If you open your freezer and find a solid wall of ice where the back panel used to be, or you notice the refrigerator section slowly getting warmer even though the freezer still feels cold, there is a good chance the defrost system has stopped working. This is one of the most common refrigerator problems we fix on service calls across Evanston, Chicago, and the surrounding suburbs — and the photos from this recent job show exactly what a failed defrost heater looks like after a few weeks of going unaddressed.
How does the refrigerator defrost system work?
Every modern frost-free refrigerator runs an automatic defrost cycle every 8 to 12 hours. During this cycle, a small electric heater — the defrost heater — warms the evaporator coils just enough to melt any frost that has accumulated on them since the last cycle. The meltwater drains down through a drain tube and out into a pan near the compressor where it evaporates. When everything is working correctly, you never see frost inside the freezer at all.
When the defrost heater fails, this cycle stops happening. Frost accumulates after every cooling cycle and never gets cleared. Over days and then weeks, it builds into the thick ice slabs visible in the photos above — completely encasing the evaporator coils and blocking airflow between the freezer and refrigerator sections. The freezer may still feel cold because the coils are still trying to work, but the refrigerator section above gradually warms up as cold air can no longer circulate through the blocked coils.
What are the signs of a failed defrost heater?
The pattern of symptoms is very specific and almost always points to the defrost system before anything else:
Refrigerator warm, freezer still cold
This is the most common presentation. The freezer holds temperature because the coils are still producing cold — they are just blocked by ice and cannot push that cold air into the refrigerator compartment. Food in the fridge starts to warm while frozen food remains unaffected, sometimes for days before the homeowner realizes something is wrong.
Thick frost or ice on the freezer back wall
Any visible frost on the back wall of the freezer — especially if it builds into a solid panel over a few weeks — is a direct sign the defrost cycle is not completing. A properly functioning frost-free refrigerator should have no visible frost inside at any time.
Ice blocking the air vents
The vents between the freezer and refrigerator sections can become physically blocked by ice buildup, which stops cold air circulation completely. At this stage the refrigerator section warms up quickly and food begins to spoil.
Clicking or straining compressor sound
When the evaporator coils are heavily iced over, the compressor works harder than normal trying to push cold air through blocked passages. This shows up as a compressor that runs almost constantly and sometimes makes a louder or slightly different sound than normal.
What parts can fail in the defrost system?
The defrost system on most refrigerators has three components, and any one of them can cause frost buildup if it fails:
The defrost heater
The heater itself is a coiled resistance wire that wraps around or sits directly behind the evaporator coils. When it burns out — which it does over time, much like a heating element in an oven — the defrost cycle runs on schedule but produces no heat, so frost accumulates with every cooling cycle. A failed heater is the most common single cause of the ice buildup shown in these photos.
The defrost thermostat
The defrost thermostat is a safety device that cuts power to the heater once the coils reach a safe temperature, preventing them from overheating. If the thermostat fails in the open position, it cuts power to the heater permanently — the same result as a burned-out heater, with the same frost buildup as a consequence.
The defrost timer or control board
The timer or control board triggers the defrost cycle at the correct intervals. If the timer sticks or the control board develops a fault, the defrost cycle may stop initiating entirely, even when the heater and thermostat are both working normally.
What happened on a recent Evanston repair visit

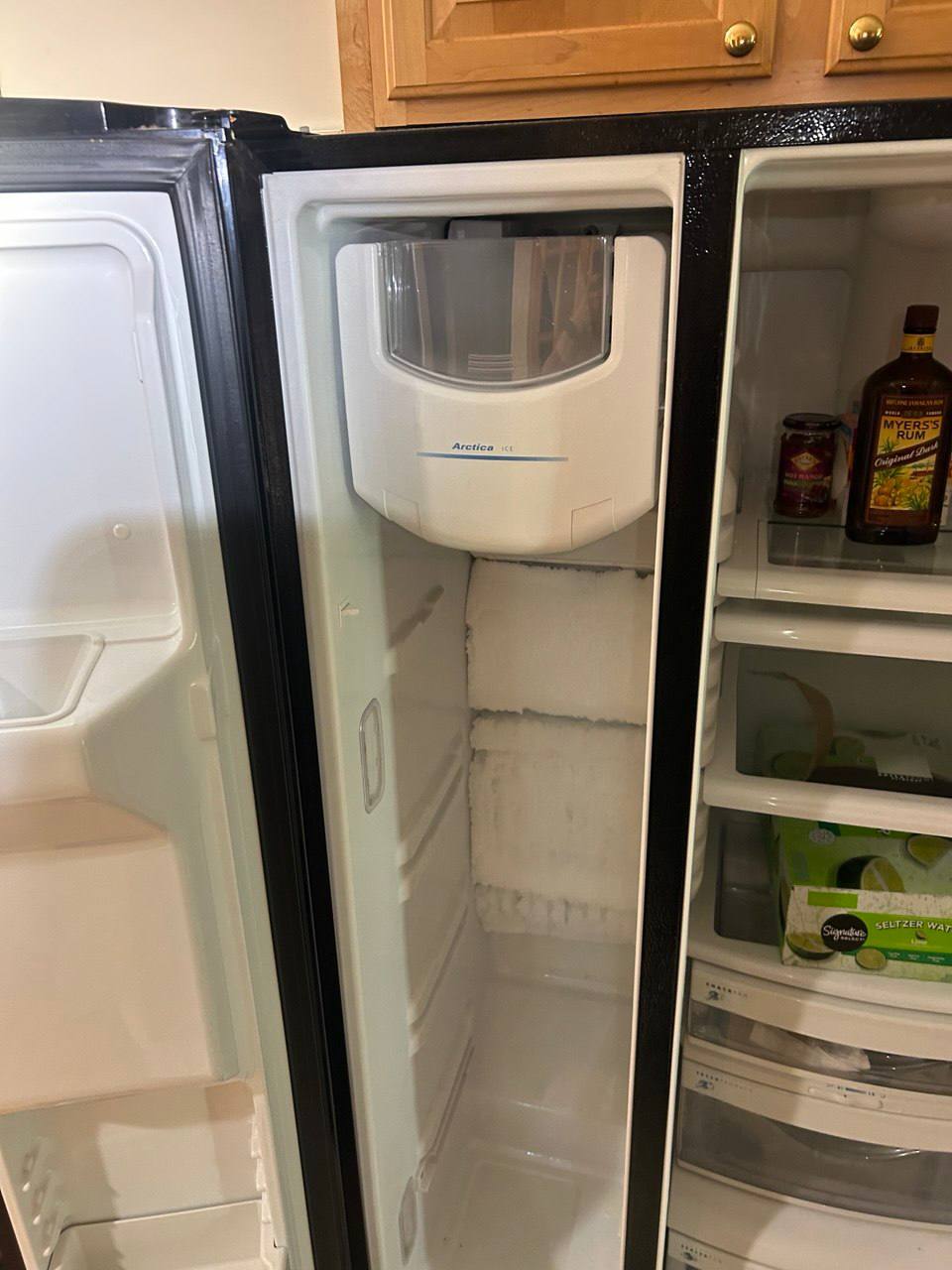

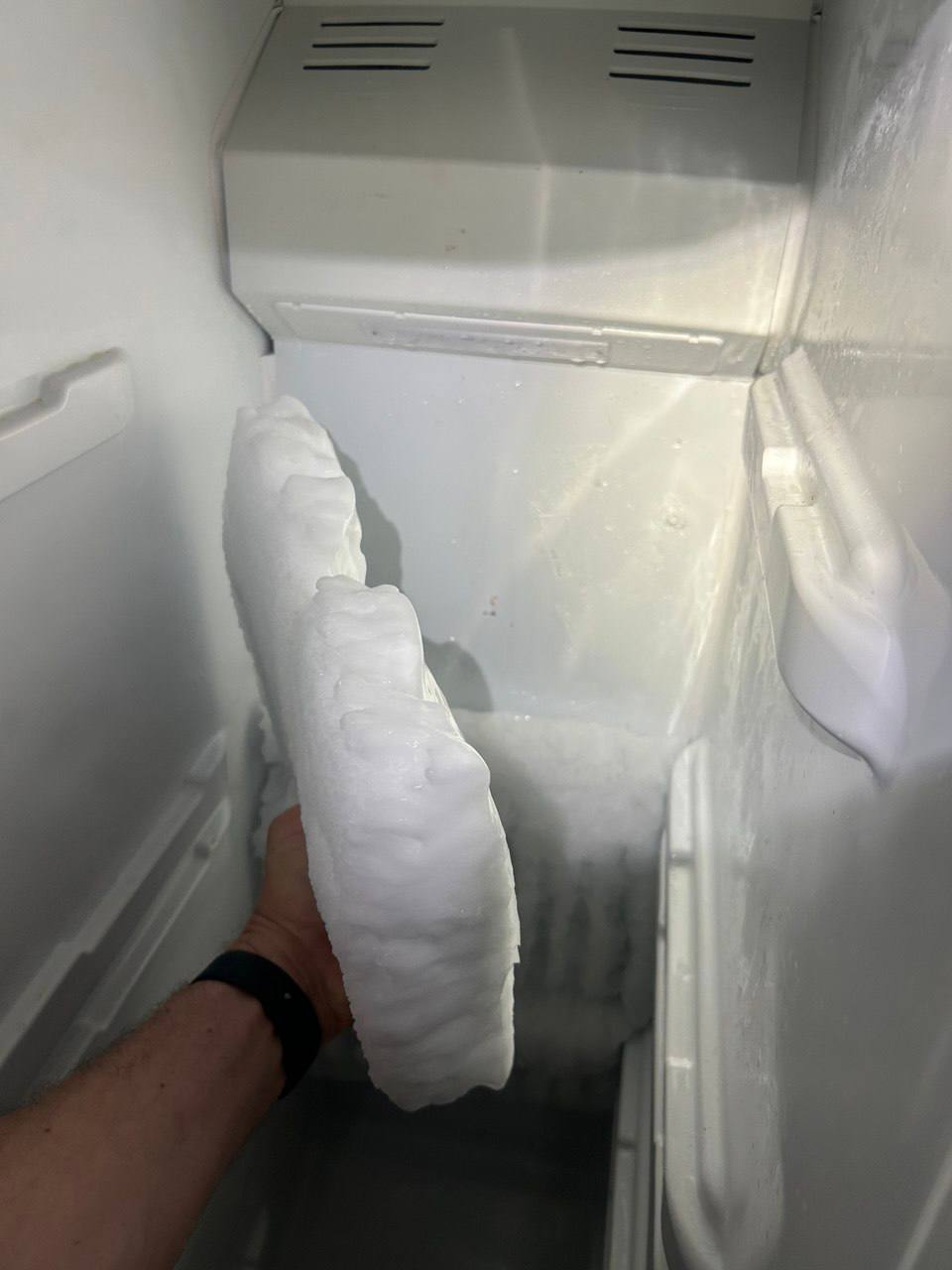

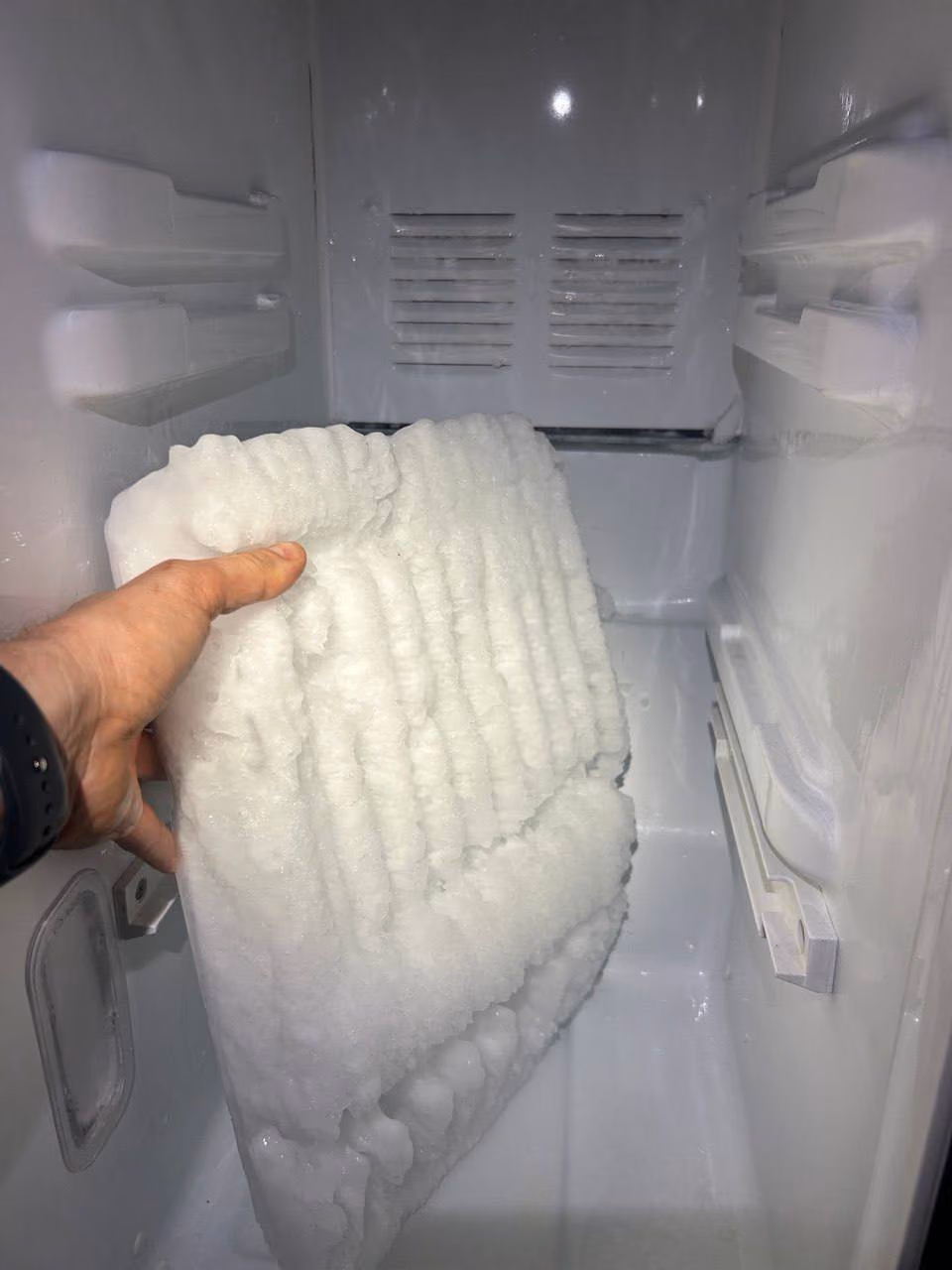

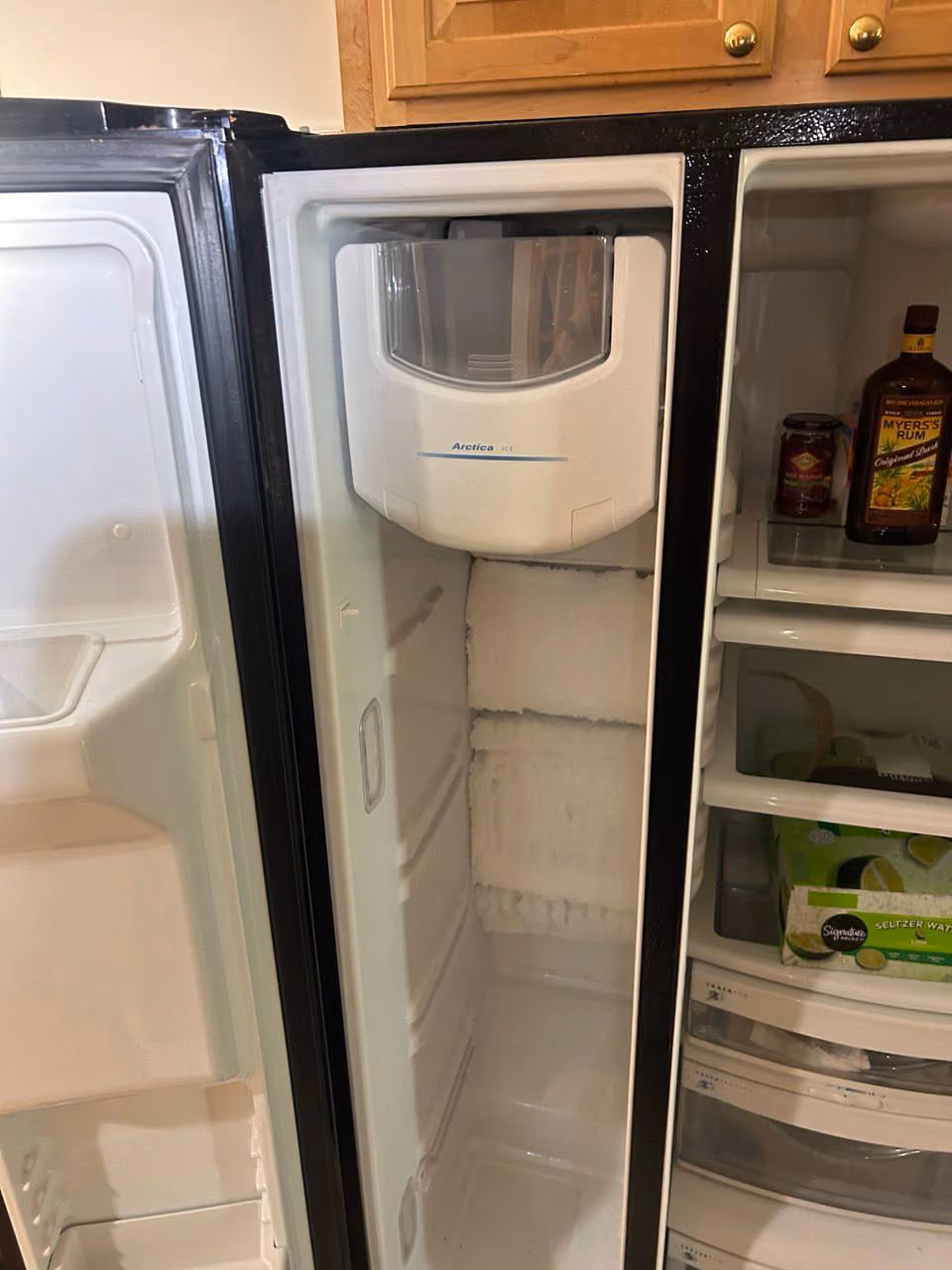

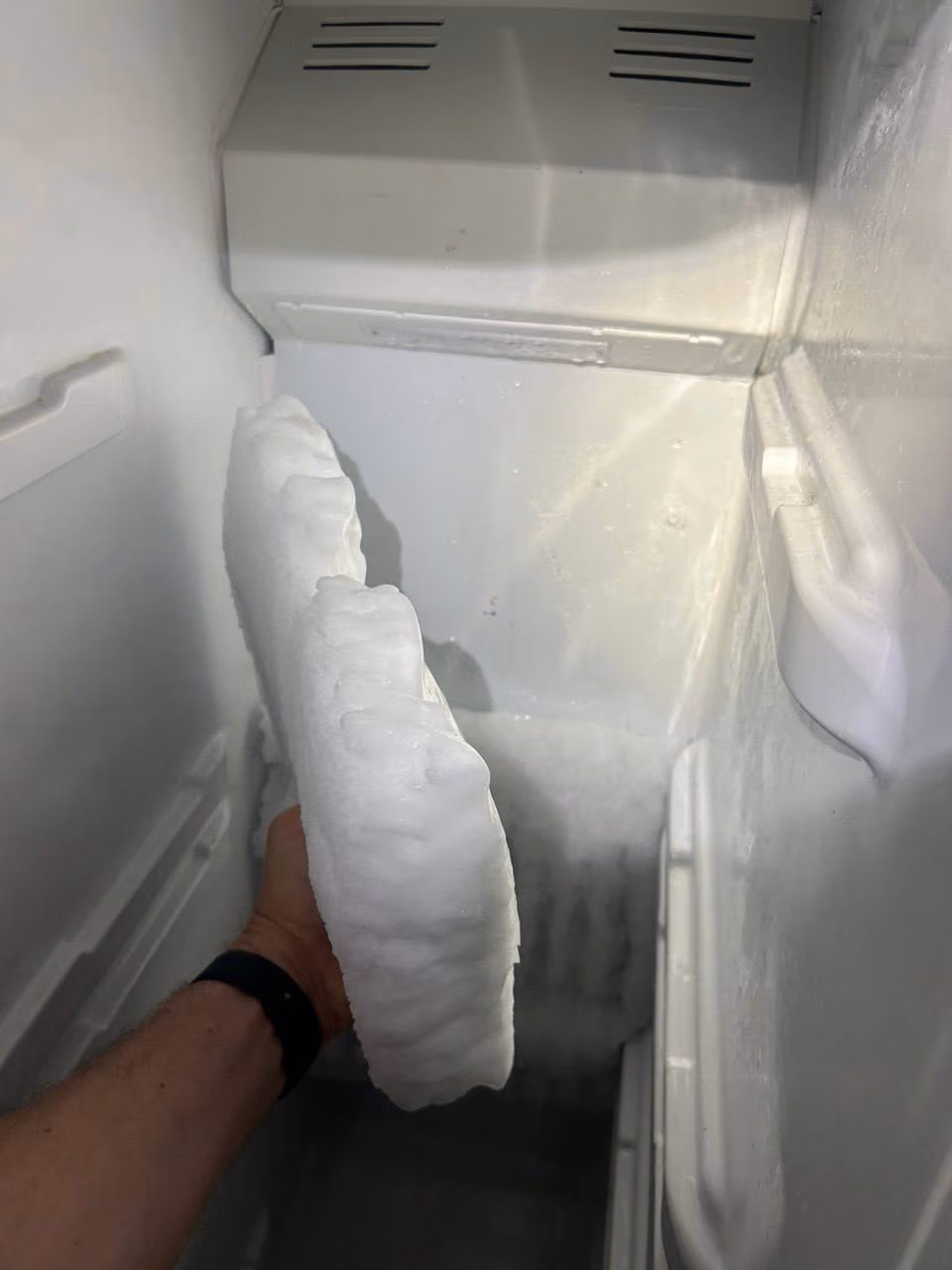

A homeowner in Evanston, IL called us after noticing their refrigerator section had been getting gradually warmer over about two weeks while the freezer still felt cold. When they opened the freezer fully, they found the entire back panel had turned into a solid block of ice — the evaporator coils completely buried and the air vents between compartments fully blocked.
Our technician manually defrosted the coils, then tested each defrost system component individually. The defrost heater tested open on the multimeter — a clean burn-out with no continuity — while the thermostat and control board were both functioning correctly.
Location: Evanston, IL
Appliance: Side-by-Side Refrigerator
Issue: Refrigerator section warming up, freezer still cold, ice slab on evaporator panel
Diagnosis: Defrost heater burned out — no continuity on multimeter test
Repair: Defrost heater replaced, full manual defrost completed, defrost cycle tested and confirmed
Technician: Ihor
Once the new heater was installed and the ice cleared, the refrigerator returned to the correct temperature within three hours. The homeowner’s food was saved and the repair was completed in a single visit.
Can I fix the issue myself by unplugging the refrigerator?
Unplugging the refrigerator and leaving the freezer door open for 24 to 48 hours will melt the ice and temporarily restore cooling. Food will need to be moved to a cooler during this time. However, this only addresses the symptom — the frost will begin rebuilding immediately after you plug the fridge back in, and within one to three weeks the ice slab will return. The defrost heater, thermostat, or timer needs to be tested and the failed component replaced to actually fix the problem.
How much does a defrost heater repair cost?
Most defrost heater replacements in the Chicago area cost between $180 and $280 including parts and labor, depending on the refrigerator brand and how accessible the evaporator coils are. If the defrost thermostat or timer needs to be replaced alongside the heater, the total is typically $220 to $340. In almost every case, repair is significantly less expensive than replacing the refrigerator.
Looking for a refrigerator technician near you in Evanston or Chicago?
If your fridge is warming up, your freezer has frost buildup, or you are searching for fridge repair near me in the Chicago area, our technicians are available for same-day service across Evanston, Chicago, Elmwood Park, Oak Park, Niles, Morton Grove, and Des Plaines. Our technicians carry defrost heaters, thermostats, and timers for all major brands on every service vehicle — most defrost repairs are completed in a single visit with no return trip for parts.
Call us or book online. We diagnose the issue, give you a clear estimate before any work begins, and back every repair with our 30-day labor warranty.
